gizDuino Blink LED

Review:

What is LED?

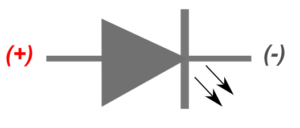

A light-emitting diode is a two-lead semiconductor light source. It is a p-n junction diode that emits light when activated.

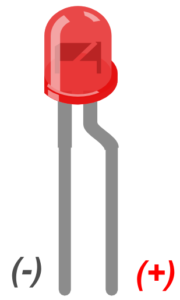

Negative polarity or Cathode “-“ is the shortest pin. (see also the LED bulb with flat side)

Positive polarity or Anode “+” is the longest pin.

What is a Resistor?

A resistor is a passive two-terminal electrical component that implements electrical resistance as a circuit element. The resistor’s resistance limits the flow of electrons through a circuit. They passive components, meaning they only consume power.

Reference: Wikipedia,LED,Resistor

Materials Need:

1  x    gizDuino PLUS ATmega644P

1  x   Solderless Breadboard

1 x    Red LED 5mm

1  x   560 Ohms

1  x   USB Cable

2 x  1pin Jumper wire (male-male)

Schematic Diagram:

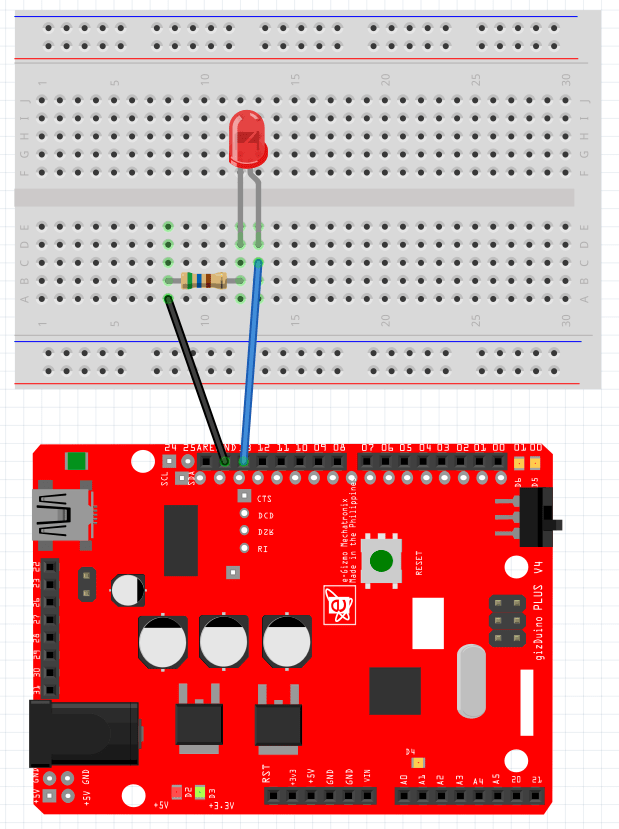

Wiring Connection:

Digital pin 13 —> (+) Anode LED

(-) Cathode —> 560 Ohms —> Ground

Code:

	/*
	"GizDuino Starter kit"
	BLINK Sample code
	STEP 1: Construct the circuit of GizDuino Blink.
	STEP 2: Connect the USB Cable to your computer.
	STEP 3: Open the Arduino IDE.
	STEP 4: Open the BLINK Sample code from GizDuino Starter kit code.
	STEP 5: Then, click Upload.
	This sample code is based on Arduino Example>Basic>Blink.
	It is a simple program turns on the LED in 1 second and turn off in 1 second.
	This example code is in the public domain.
	*/
	// led is the givenname for digital pin 13.
	int led = 13;
	// the setting up of pins.
	void setup() {
	// initialize the digital pin as an output.
	pinMode(led, OUTPUT);
	}
	// the loop is where your program runs repeatedly.
	void loop() {
	digitalWrite(led, HIGH); // turn the LED ON (HIGH)
	delay(1000); // wait for a second
	digitalWrite(led, LOW); // turn the LED OFF (LOW)
	delay(1000); // wait for a second
	}

view rawBlink.ino hosted with  by GitHub
