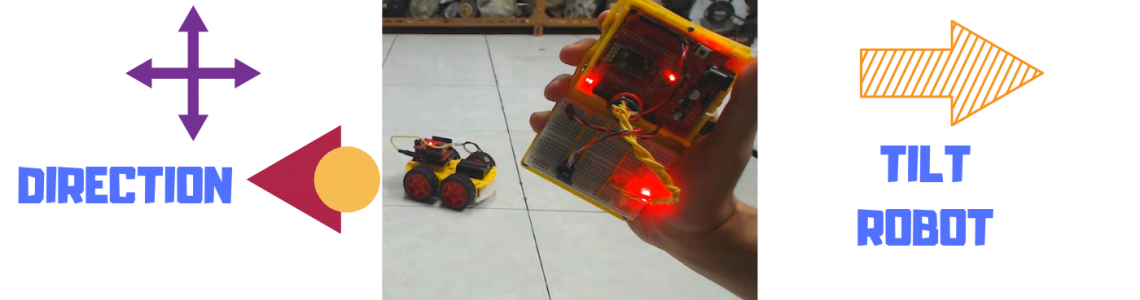

Direction Tilt Robot
10 Jun
Posted By
0 Comment(s)
1339 View(s)
Demo Video
Materials
1 x gizDuino UNO-SE
1 x Motor Driver Shield
2 x HC-05 Bluetooth Shield
1 x gizDuino PLUS
1 x eBot Standard
2 x Green LED 5mm
1 x Orange LED 5mm
1 x Red LED 5mm
Jumper Wires
1 x 7.4V Li-ion Battery Samsung
1 x USB cable
1 x RPI-1031 Direction Tilt Sensor
Wiring Diagram (Master)
Codes - MASTER
Codes - RECEIVER
Documented by: King Johnnel Olgado
