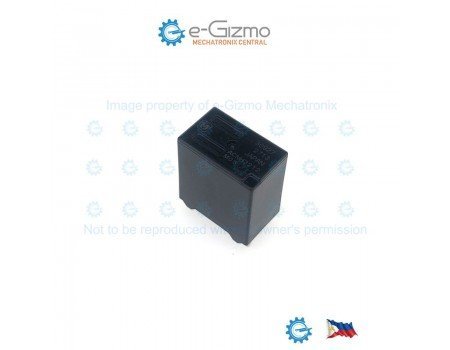

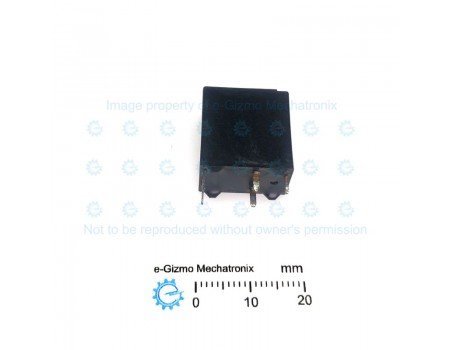

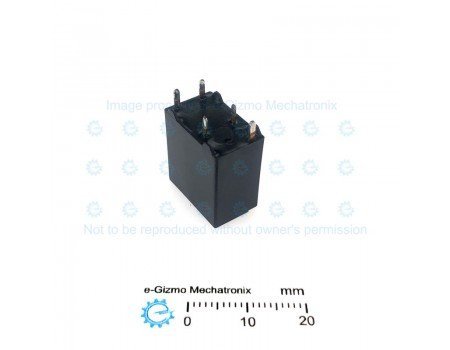

Panasonic ACNH3212 12V 20A High Load Automotive Relay

Tags: relay

Description
Reviews

ACNH3212 Automotive Qualified Relay.

Number of pins: 5

Contact Form: 1 Form A SPST
Contact Material: Ag Alloy
Contact Rating: 20A @ 14VDC
Contact Resistance: 5mR
Mechanical Endurance: 10 million operations

Coil Voltage: 12V Nominal
Coil Pickup Voltage: 6.5V
Coil Power: 640mW

Weight: 9g

Prices and stock availability subject to change without prior notice. If you want this product but it indicates it is not in stock, chat us or simply add it to your cart anyway. Our staff will contact you to inform if we can/cannot provide the item in your order.
