HASCO 450-0163-z 24V 40A SPST Power Relay

Tags: relay

Description
Reviews

Original Brand 450-0163-z Relay 24V 40A SPDT

Mfr: HASCO

Number of pins: 4

Contact Form: 1 Form A SPST
Contact Rating: 40A
Contact Voltage: 240VAC 14VDC
Contact Switching Power:1HP @ 120VAC/28VDC
Coil Resistance: 680R Typ.
Pickup Voltage: 18V approx.
Release Voltage: 4V approx.
Safety Approvals: UL, CSA, TUV
Weight: 26g

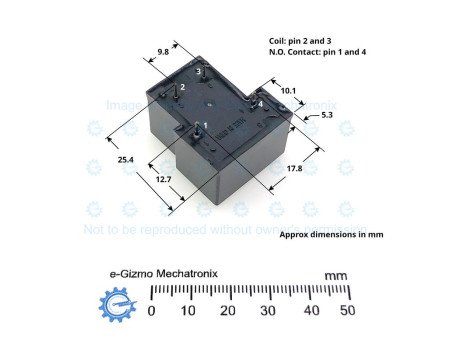

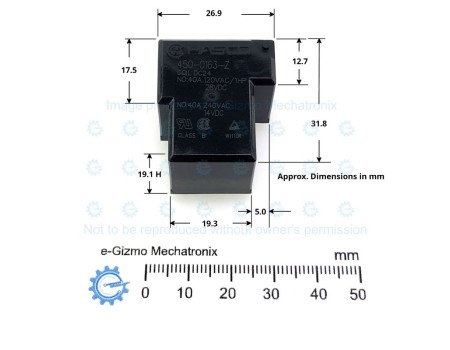

Dimensions: See Photo gallery

Prices and stock availability subject to change without prior notice. If you want this product but it indicates it is not in stock, chat us or simply add it to your cart anyway. Our staff will contact you to inform if we can/cannot provide the item in your order.
