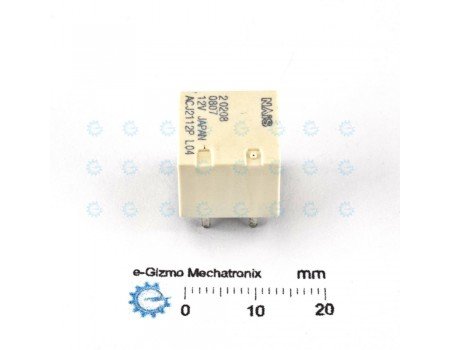

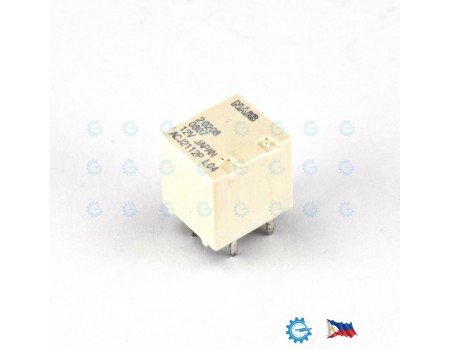

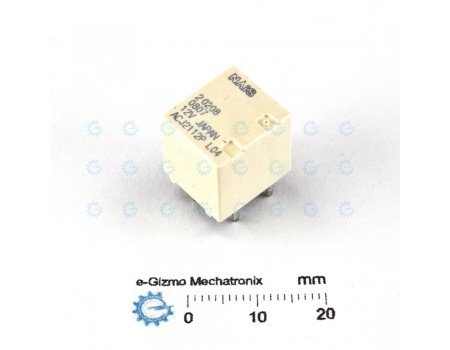

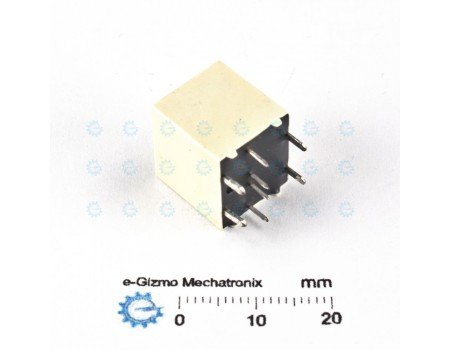

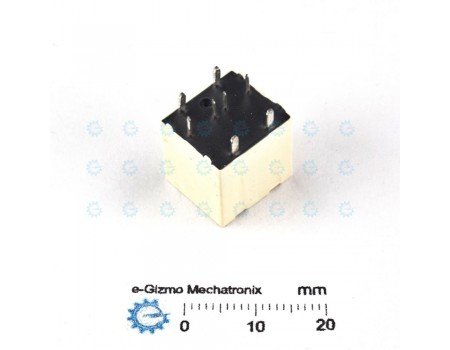

ACJ2112P 12V SPST Twin Miniature Automotive Relay 20A

Genuine NAIS TWIN RELAY SPST 20A 12V ACJ5212
Two independents SPST relay in one package.
Made in Japan

Coil Data
Nominal Coil Voltage: 12VDC
Usable Voltage Range: 10-16VDC
Pickup Voltage: 7.2VDC
Dropout Voltage: 1.0VDC
Operating Current: 53.3mA
Coil Resistance: 225R
Coil Operating Power: 640mW

Contact Data:
Arrangement: SPST
Contact Resistance: 7mR Typical
Contact Material: Ag Alloy
Contact Rating: 20A @ 14VDC
Shock Resistance: 10G while in operation
Vibration Resistance: 4.5G 10Hz-100Hz
Mechanical Life: >10million operations
Electrical Life: >200,000 operations @ 20A


Automotive-qualified relay are very reliable and robust, will function even under punishing operating conditions like where vibrations, shock, high temperature, and high humidity are persistent.
