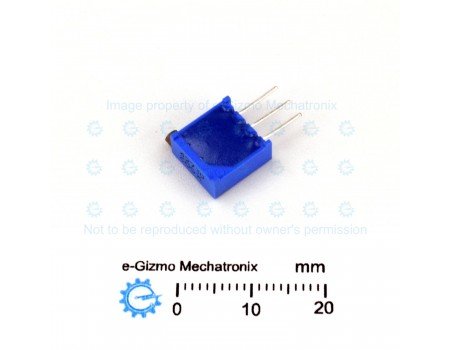

Bourns 3296X 5K 25 Turns Precision Trimmer Potentiometer Resistor

Tags: multiturn , timmer multiturn

Description
Reviews

Genuine Bourns Multiturn Precision Trimmer side adjust Potentiometer.
Cermet/Industrial/Sealed

Resistance: 5K +/- 10%
Minimum Resistance: 1% of nominal
Contact Resistance Variation: 1% of nominal value
Voltage Adjustability: +/- 0.01%
Resistance Adjustability: +/- 0.05%
Adjustment Angle: 25 turns nominal

Power Rating: 0.5W
Operating Temperature: -55C to +125C
Temperature Coefficient: +/- 100ppm/C
Rotational Life: 200 cycles

Prices and stock availability subject to change without prior notice. If you want this product but it indicates it is not in stock, chat us or simply add it to your cart anyway. Our staff will contact you to inform if we can/cannot provide the item in your order.
