Japan Servo KH56KM2U036 unipolar stepping Motor 3.0A 2.3V 1.8 deg 56mm NEMA 23

Tags: Stepper Motor Driver , 2 phase , 5 phase

Description
Reviews

KH56 series 2-phase Hybrid Stepping Motor Double Shaft

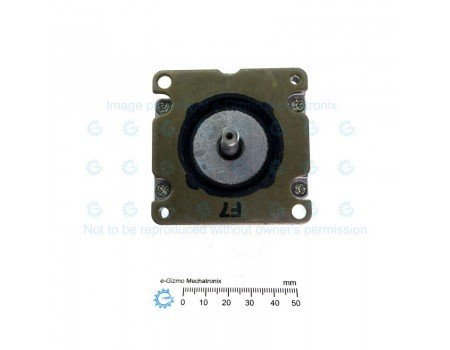

With vibration damping secondary mounting bracket
Manufacturer: Japan Servo (Nidec)

Frame size: 56mm (NEMA 23)
Drive Method: Unipolar
Phases: 2
Voltage: 2.3V
Current: 3.0A per phase
Winding Resistance: 0.77R per phase
Inductance: 1.04mH per phase
Holding Torque: 834 mN*m
Detent Torque: 37 mN*m
Rotor Inertia: 188 g*cm2
Weight: 655g

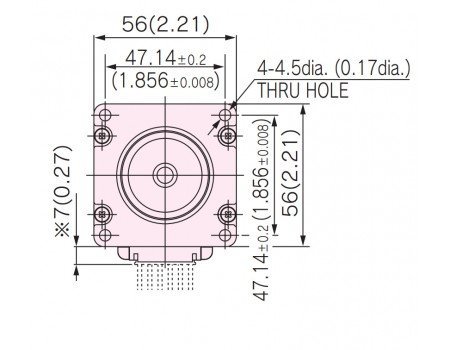

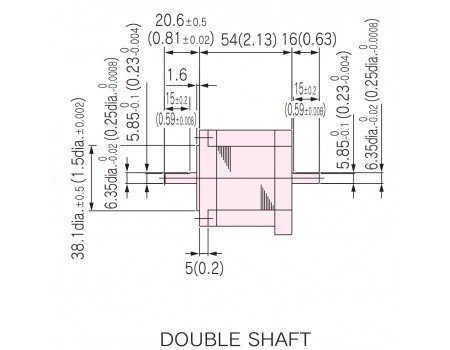

Dimensions: See in photo gallery. Note: Secondary mounting bracket not included in the drawings.

Prices and stock availability subject to change without prior notice. If you want this product but it indicates it is not in stock, chat us or simply add it to your cart anyway. Our staff will contact you to inform if we can/cannot provide the item in your order.
