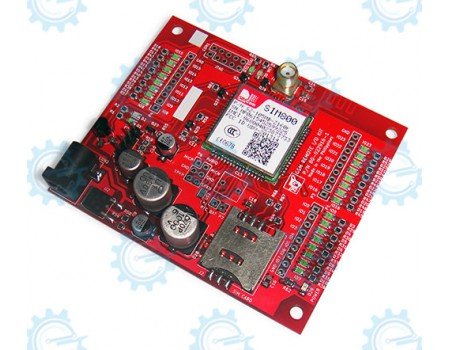

GSM Remote I/O Kit
GSM Remote I/O Kit
₱1,970.00
- Stock: In Stock
- Product Code: 77011361
- Weight: 0.00g
- Product ID: 1246
Your shopping cart is empty!
GSMIO is highly configurable application specific SMS based board that you can use to add SMS remote control functionality to your projects, fast and easy. With GSMIO, you have no longer need to get through all those long and difficult programs normally associated with developing SMS devices. Thus with it, you can focus your effort to the more important functions of your project.
GSMIO is packed with just about everything you need to remotely control and monitor devices. In a lot of applications, it might be all that you need.
Demo Video :
Features :
28 I/O pins you can freely configure to function as input or output |
SMS Remote Control and monitoring of each pin |
independent auto OFF timers for each pins |
5 ports can be configured to work as 10bit ADC port |
Serial functions allows you to connect and SMS remotely control add-ins serial devices with the GSMIO |
Configurable ALARM pin turns your GSMIO into a SMS based alarm unit |
Easy to use configuration menu allows you to setup GSMIO according to your needs |
Ports alias feature allows you to rename ports to your preferences |
Host of supported remote SMS commands |
Uses a newer and better SIM800 GSM Module |
With voice enable commands or automatic answering the incoming call |
Most secure device good for your home automation projects or other applications via SMS control |
Specifications :
Input supply | 5-9VDC (External) |
Required current | 1-2.6A (External) |
Interface | Serial Communication |
Normal operating temperature | (-40degC to 85 degC) |
SIM interface | Supports SIM card 1.8V, 3V |
MCU IC | ATmega644P |
Physical characteristics | Size: 24x24x3mm Weight: 3.2g PCB Dimension: 64x64mm |
Downloads :
Technical Manual | Download |
Schematic Diagram | Download |
Configuration guides & Software | Download |
Connection Diagram for GPS to GSMIO | Download |
PCB Layout | Download |
