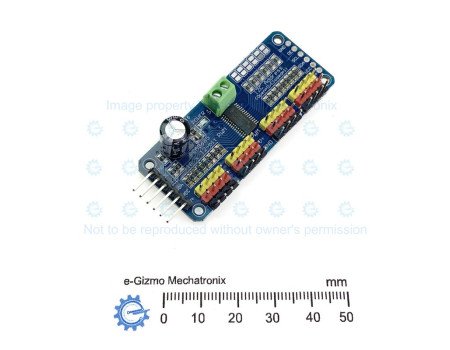

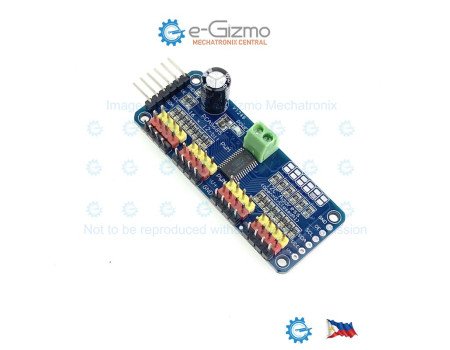

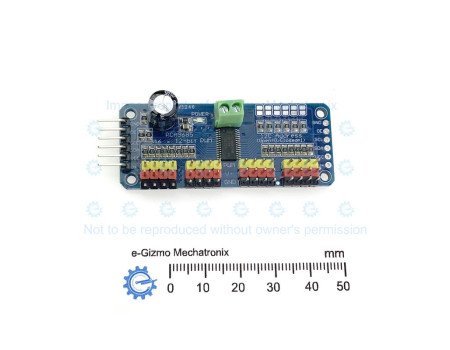

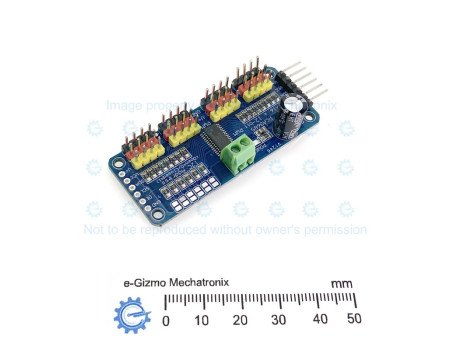

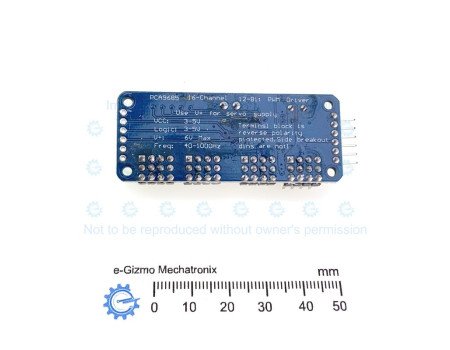

16 Channel 12-bit PWM Servo Driver I2C PCA9685

If you’ve ever tried to build a hexapod walker or a complex robotic arm using just an Arduino, you’ve likely hit a wall: not enough pins. Most microcontrollers tap out after a few servos, leaving your ambitious project literally paralyzed.

Enter the PCA9685 16-Channel 12-bit PWM Driver. Think of this as a dedicated "middleman" for your hardware. It handles the heavy lifting of timing and pulsing your servos so your main processor can focus on the logic and the "cool stuff." Using only two pins via the I2C protocol, it gives you independent control over 16 different outputs.

Feature Specification

Channels: 16 Channels (can drive 16 servos or LEDs)
Resolution: 12-bit (4096 steps of precision)
Communication: I2C Interface (Uses only SDA/SCL pins)
Voltage Range: 2.3V to 5.5V (Logic); Up to 6V for Servos
Frequency: Adjustable from 24Hz to 1526Hz
Expandability: Up to 62 buffers can be chained (992 outputs!)
