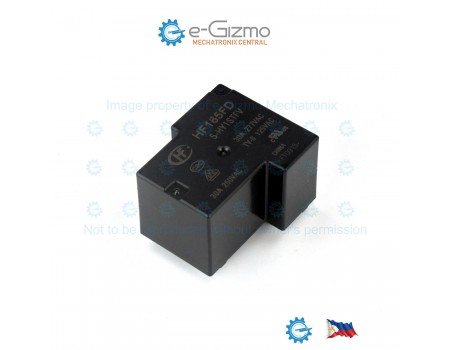

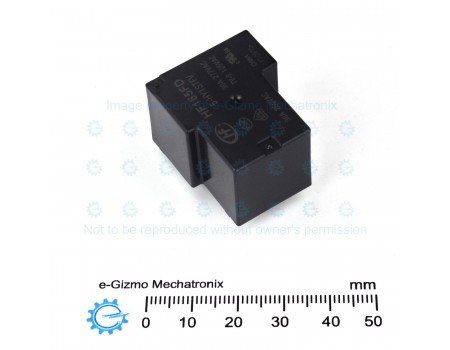

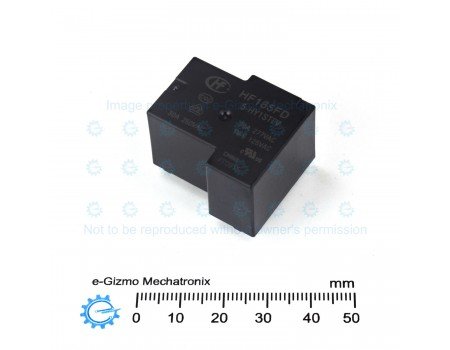

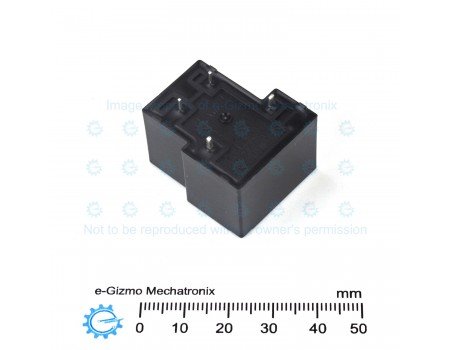

HongFa High Power Relay 30A 5V coil SPST HF165FD-5

Tags: relay

Description
Reviews

Coil Data:
Nominal Voltage: 5VDC
Maximum Voltage: 6.5VDC
Pickup Voltage: 3.75VDC
Dropout Voltage: 0.5V
Coil Resistance: 27R

Contact Data:
Contact Rating: 30A @ 277VAC
Contact Resistance: 100mR max.
Contact Material: AgSnO2
Electrical Endurance: >100,000 operations
Operate Time: 15ms max.
Release Time: 10ms max.
Safety Approvals: UL, CUL, CQC, VDE

Prices and stock availability subject to change without prior notice. If you want this product but it indicates it is not in stock, chat us or simply add it to your cart anyway. Our staff will contact you to inform if we can/cannot provide the item in your order.
