PBL403 200V 4A Bridge Rectifier UL Certified

Tags: diode , bridge

Description

Maximum Recurrent Reak Reverse Voltage: 200V
Maximum RMS Bridge Input Voltage: 140Vrms
Maximum Average Rectified Current: 4A
Surge Current (1/2 cycle): 150A
Maximum Forward Voltage per element: 1.1V
It Rating for fusing(t<8.3ms): 166 A^2S
Safety Certification: UL

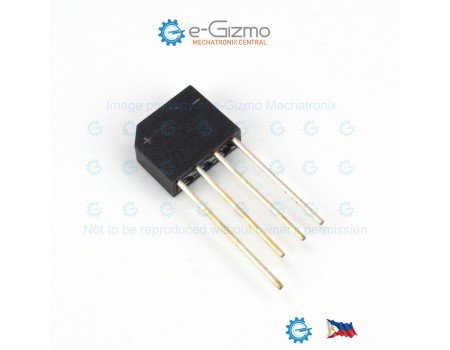

Package/Image: rs4l

Prices and stock availability subject to change without prior notice. If you want this product but it indicates it is not in stock, chat us or simply add it to your cart anyway. Our staff will contact you to inform if we can/cannot provide the item in your order.
