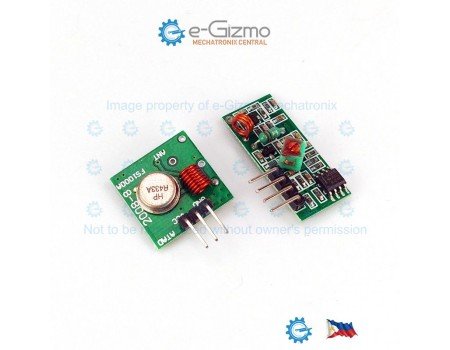

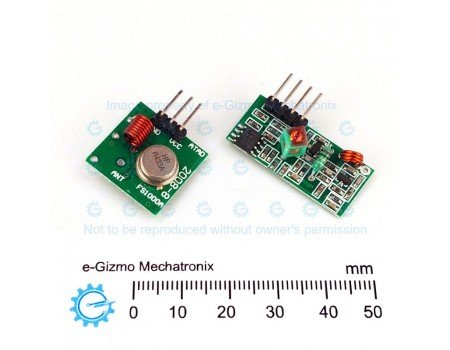

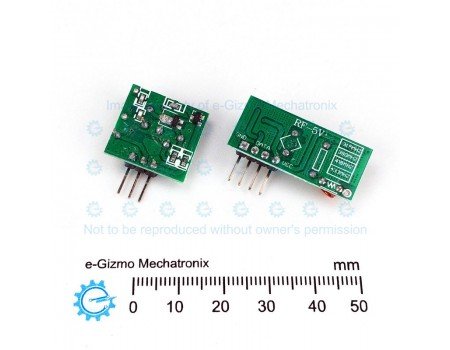

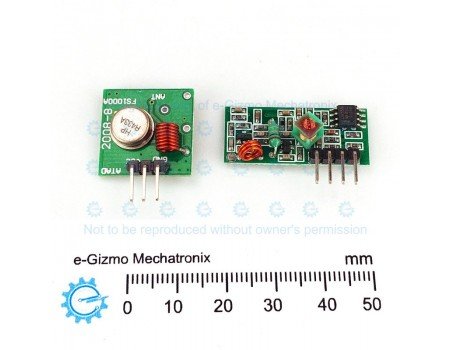

433MHz RF Transmitter and Receiver Module

MX-05V is a compact and versatile RF (radio frequency) transmitter module designed for wireless communication applications. This module operates on the 433MHz frequency band, providing reliable and long-range transmission capabilities. The MX-05V module is easy to use and integrate into various electronic projects, allowing for the wireless transmission of data, control signals, and commands.

Receiver module:

Operating voltage: DC5V
Quiescent Current: 4MA
Receiving frequency: 433.92MHZ
Receiver sensitivity: -105DB
Size: 30mm x 14 mm x 7mm

RF Transmitter:
Conrol distance :20-200 meters (different voltage, different results)
Operating voltage :3.5-12V
Dimensions: 19 * 19mm
Operating mode: AM
Transfer rate: 4KB / S
Transmitting power: 10mW
Transmitting frequency: 433Mhz
Pinout from left: (DATA; VCC; GND)
