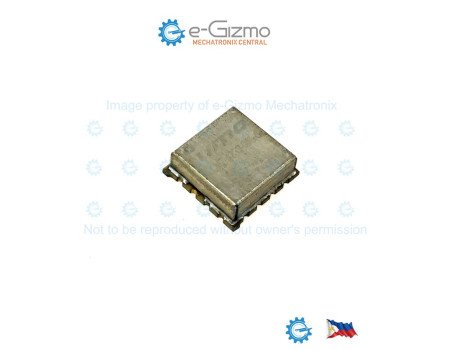

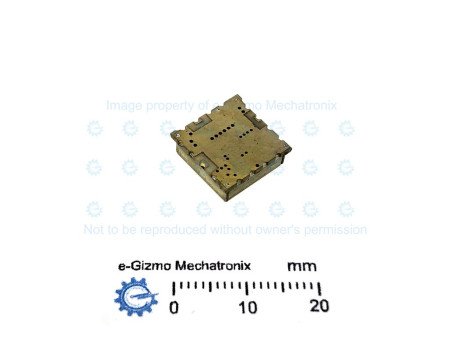

UMZ-1233-R16-G 2.77-3060 MHz +9dbm VCO Module

The UMZ-1233-R16-G is a high-performance Voltage Controlled Oscillator (VCO) designed for those who need rock-solid frequency stability without sacrificing flexibility. Whether you’re building a custom drone link or refining a high-speed data transmission rig, this component acts as the "heartbeat" of your RF system.

Feature Specification

Frequency Range: 2770 MHz to 3060 MHz
Tuning Voltage: 0.5V to 4.5V
Output Power: +9.0 dBm (Typical)
Phase Noise: -103 dBc/Hz @ 10kHz offset
Supply Voltage: 5.0 V
Package Type: Surface Mount (R16)
Operating Temp: -40°C to +85°C
