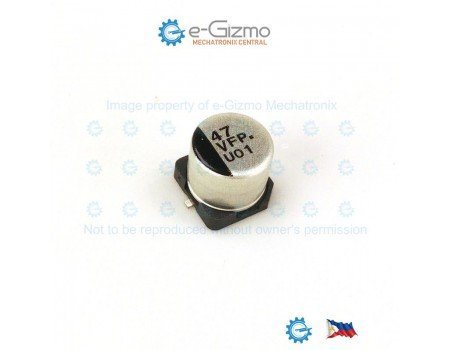

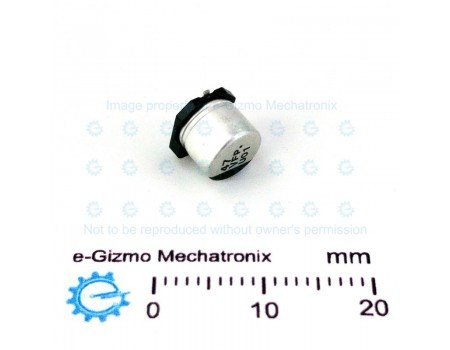

Panasonic 47uF 35V 105C SMD Electrolytic Capacitor Low ESR FP Series

Tags: capacitor , electrolytic , smd , smd electrolytic

Description
Reviews

Panasonic FP Series Low ESR SMD Aluminum Electrolytic Capacitor

MPN: EEEFP1V470AP
Capacitance: 47uF +/-20%
Working Voltage: 35VDC
Category Temperature Range: -55C to +105C
Dissipation Factor: 0.12 @120Hz
Ripple Current: 300ma @ 100kHz +105C
Impedance: 0.26R @ 100kHz
Dimensions: d6.3 x 5.8mm

Markings may vary from what is shown in the image.

Prices and stock availability subject to change without prior notice. If you want this product but it indicates it is not in stock, chat us or simply add it to your cart anyway. Our staff will contact you to inform if we can/cannot provide the item in your order.
