MOTION DETECTION: XYC-WB-DC 5.8GHz Microwave Radar Motion Sensor

Based on 0 reviews. - Write a review

₱145.00

Stock: In Stock
Product Code: 580014446
Weight: 0.00g
Product ID: 1284

Add to Cart

Buy Now

Add to Wish List Compare this Product

Description
Reviews

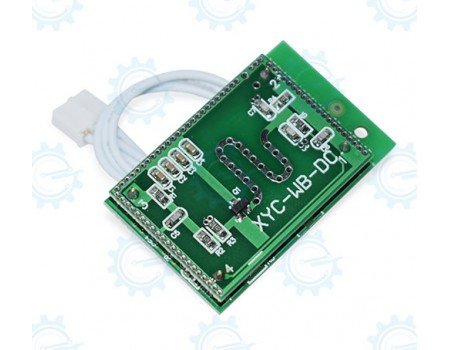

XYC-WB-DC 5.8GHz Microwave Radar Motion Sensor can detect moving people and objects even through glass and thin walls.

Features :

Interface with gizDuino MCU.

Wide Range of motion detection

Works through walls but can be blocked by metal

Specifications :

Power Input	3.3-20VDC
Operating Frequency	5.8Ghz
Detection Angle	360 degrees
Detection Range	6~9 meters
Standby Current	<3mA
Transmit Power	<2mW
Operating Environment	-20 to 80 degree Celsius

Downloads :

Technical Manual	Download
Sample Arduino/gizDuino Sketch	Download

Prices and stock availability subject to change without prior notice. If you want this product but it indicates it is not in stock, chat us or simply add it to your cart anyway. Our staff will contact you to inform if we can/cannot provide the item in your order.
