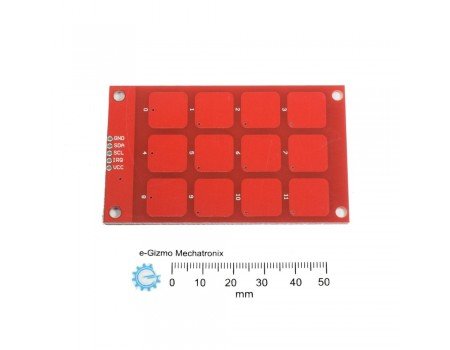

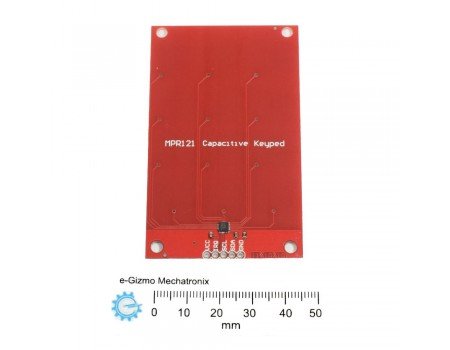

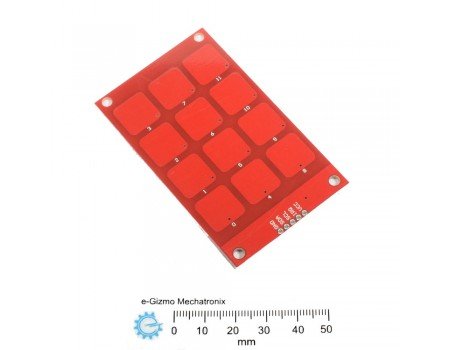

MPR121 Capacitive Touch keypad
MPR121 Capacitive Touch keypad
₱273.00
- Stock: In Stock
- Product Code: 580013266
- Weight: 0.00g
- Product ID: 1329
Your shopping cart is empty!
The MPR121QR2 is a capacitive touch sensor controller that makes it very easy to integrate capacitive touch sensing into your project. It communicates via I2C, and works by measuring the capacitance of twelve electrode points. When an object comes close to the electrode connector, the measured capacitance changes. This signals the MPR121 that something has touched a ‘button’. The IC is also capable of driving LEDs or basic GPIO functionality on electrode pins 4 through 11, giving you a lot of freedom for setting up your project. The sensor works from 1.6V to 3.3V. The sensor isn’t very current-hungry, drawing only around 29 µA when sampling every 16 milliseconds.
Specifications :
Power Input | 1.6-3.3VDC |
Current | 29uA |
Communication | i2c |
PCB Dimensions | 78x49mm |
Downloads :
Hardware Manual | Download |
Sample Arduino / gizDuino Sketch | Download |
