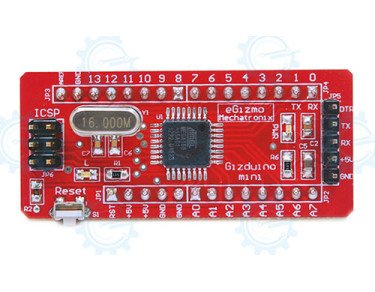

gizDuino Mini with ATmega168 (with pins)

Tags: gizDuino , Arduino , Mini , Microcontroller , ATmega168 , Arduino Uno

Description
Reviews

gizDuino mini is an Arduino software compatible board in a small DIP-size board. It is a minimalist design, but has all the necessary components needed for a quick deployment. Pin spacings are likewise standard, allowing you to use it with your breadboard and protoboards.

Initially available in four variants:

gizDuino mini with ATmega8

gizDuino mini with ATmega88

gizDuino mini with ATmega168

gizDuino mini with ATmega328

Specifications :

Power Input	1.8V-5.5V
Clock Frequency	8MHz ( ATMEGA8L ) 16MHz ( ATMEGA 88, 168, 328 )
Programming Ports	Arduino & ICSP
Board Dimensions	Length : 51mm Width : 23mm

Downloads :

Getting Started with gizDuino boards (How to Install the Arduino IDE and Driver)	Blog
Hardware Manual (Guide)	Download
Arduino IDE Softwares and Prolific Drivers	Download
PCB Top Layer Guide	Download
PCB Bottom Layer Guide	Download
Schematic	Download

Prices and stock availability subject to change without prior notice. If you want this product but it indicates it is not in stock, chat us or simply add it to your cart anyway. Our staff will contact you to inform if we can/cannot provide the item in your order.
