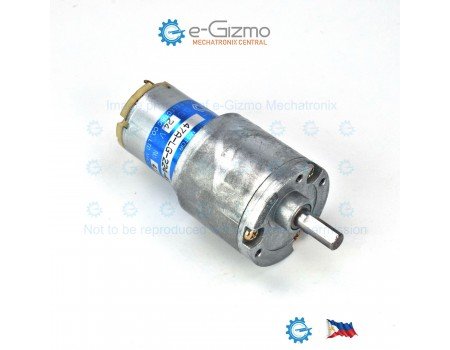

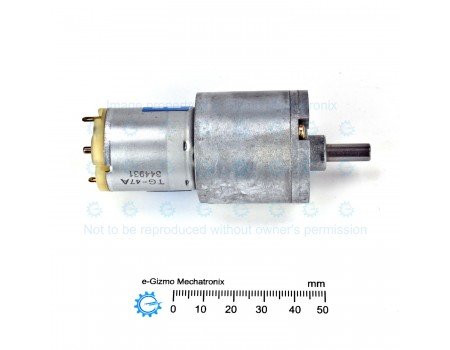

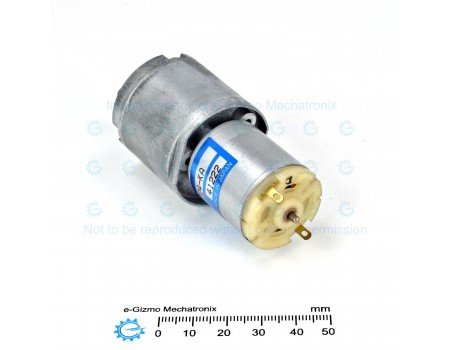

Tsukasa High Torque DC Gear Motor 24V 19.4rpm 3.6W TG-47A-LG-224-KA

Tags: motor , stepper motor , dc motor , gear motor

Description
Reviews

Industrial Hi Torque DC Motor with gear box 19.4RPM

Operating Voltage: 24VDC Nominal, 6VDC-24VDC
Gear Ratio: 1:224
RPM at rated load: 19.4RPM
Running Torque: 196 mN-m (2kgf-cm) @ rated load
Power: 3.6W

Diameter: 27.5mm motor, 37mm gearhead
Lenght: 91.5mm (up to shaft base)
Shaft Diameter: 6mm
Shaft Lenght: 15

Made in Japan by Tsukasa Electric Co Ltd

Prices and stock availability subject to change without prior notice. If you want this product but it indicates it is not in stock, chat us or simply add it to your cart anyway. Our staff will contact you to inform if we can/cannot provide the item in your order.
