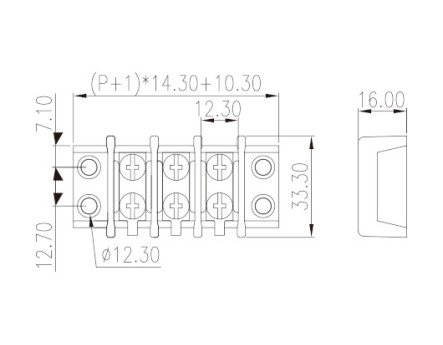

Dinkle Panel Mount Barrier Screw Terminal Block 3-way 35A 14.3mm pitch 0113

Tags: connector

Description
Reviews

Genuine Dinkle 0113-1 Series Panel Mount Barrier Terminal Block.

Base Model: 0113-1
Rating: 35A 600V
No of Pole/Pins: 3 way 6 screws
Pin Spacing (Pitch): 14.3mm
Wire Size: AWG18-AWG10

Insulation Material: PBT
Conductor Material: Copper Alloy
Safety Approvals: UL

Prices and stock availability subject to change without prior notice. If you want this product but it indicates it is not in stock, chat us or simply add it to your cart anyway. Our staff will contact you to inform if we can/cannot provide the item in your order.
