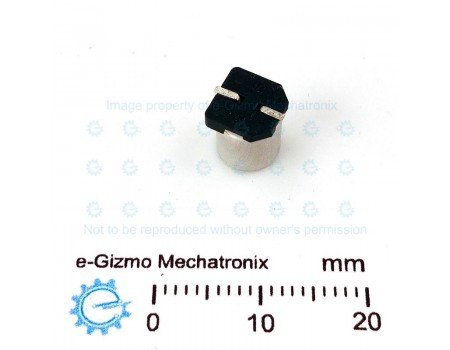

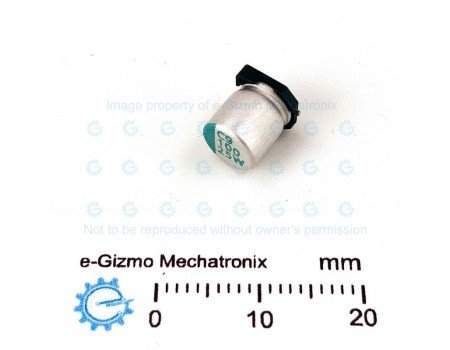

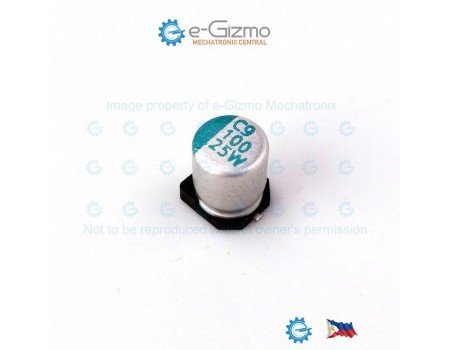

Lelon 100uF 25V 125C Conductive Polymer Hybrid Capacitor HBW Series

Tags: capacitor , tantalum capacitor , smd tantalum , tantalum

Description
Reviews

Lelon Conductive Polymer Hybrid Capacitors SMD.

Low ESR with large permissible ripple current
Extended Temperature

Manufacturer Part No: HBW101M1ETR-0608
Capacitance: 100uF +/-20%
Working Voltage: 25VDC
Category Temperature Range: -55C to +125C
Dissipation Factor: 0.14@120Hz
Ripple Current: 1400mA @ 100kHz +105C
Impedance: 0.03 ohms
Dimensions: d6.3 x 7.7mm

Markings may vary from what is shown in the image.

Prices and stock availability subject to change without prior notice. If you want this product but it indicates it is not in stock, chat us or simply add it to your cart anyway. Our staff will contact you to inform if we can/cannot provide the item in your order.
