Omron D2F-01F Ultra Subminiature Push Button Switch SPDT (Mouse Game)

Tags: push button , push button switch

Description
Reviews

Omron PCB Solderable high durability push switch. This switch is commonly used in top quality PC mouse.

Model: D2F-01F
Contact Configuration: SPDT
Contact Voltage: 30VDC max.
Contact Current; 0.1A
Actuator Force: 0.74N
Plunger: Pin
Mechanical Durability: >1million operations

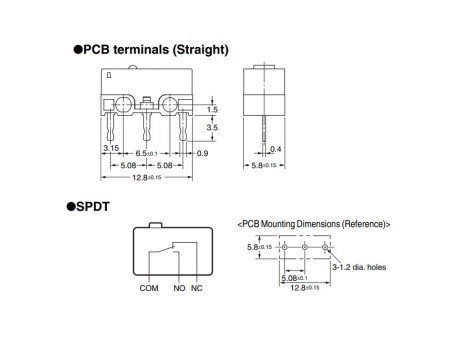

Dimensions: See photo gallery

Prices and stock availability subject to change without prior notice. If you want this product but it indicates it is not in stock, chat us or simply add it to your cart anyway. Our staff will contact you to inform if we can/cannot provide the item in your order.
