TD1583PR 3.6V to 28V Vin, 3A DC/DC Buck Converter 380kHz SOP-8

Tags: ic , pwm , converter , dc/dc

Description
Reviews

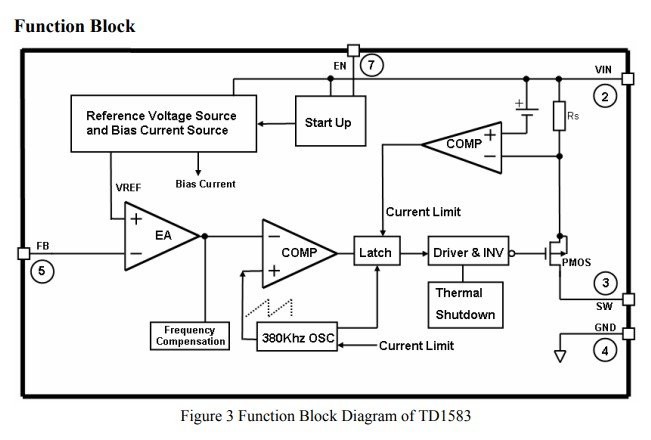

The TD1583 is a 380 KHz fixed frequency monolithic
step down switch mode regulator with a built in internal
Power MOSFET. It achieves 3A continuous output
current over a wide input supply range with excellent
load and line regulation.

Mfr: Techcode
Input Voltage: 3.6V-28VVDC
Output Current: 3A Max
PWM Frequency: 380KHz Typical
Integrated Transistor Switch

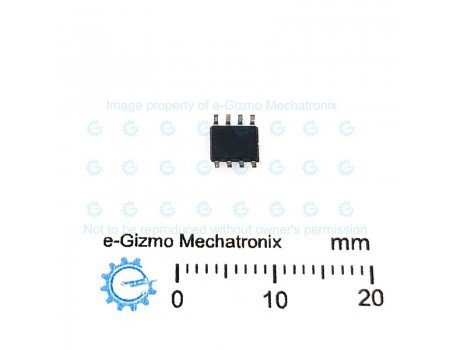

Case: SOP-8

Package/Image: SOIC-8

Prices and stock availability subject to change without prior notice. If you want this product but it indicates it is not in stock, chat us or simply add it to your cart anyway. Our staff will contact you to inform if we can/cannot provide the item in your order.
