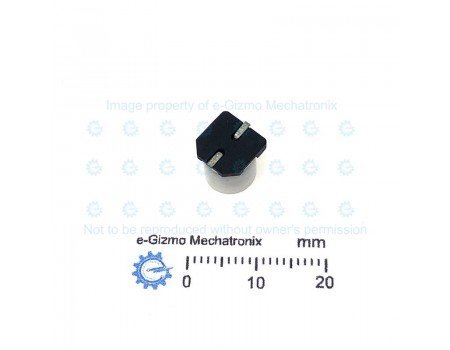

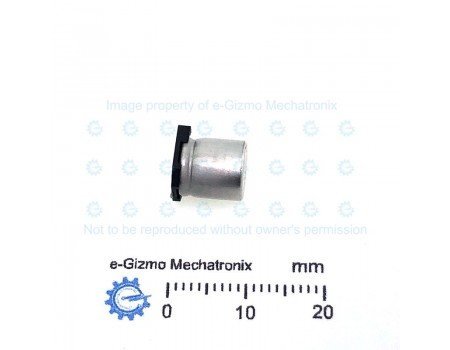

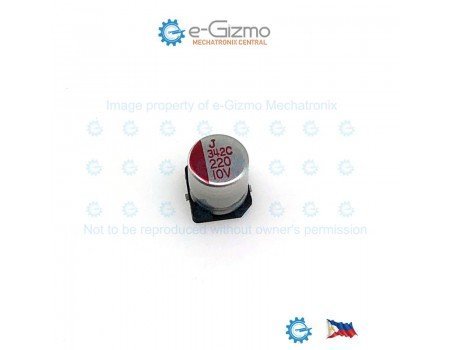

IC 220uF 10V 105C Aluminum Polymer Electrolytic Capacitor AFA Series SMD

Tags: capacitor , tantalum capacitor , smd tantalum , solid polymer , conductive polymer , low esr

Description
Reviews

Illinois Capacitor Aluminum Polymer Electrolytic Capacitor AFA Series.

Super low ESR, impedance and high heat resistance have been obtained by using conductive polymer as electrolyte.

Manufacturer Part No: 227AFA010MFK
Capacitance: 220uF +/-20%
Working Voltage: 10VDC
Category Temperature Range: -55C to +105C
Dissipation Factor: 0.05 @120Hz
Ripple Current: 4500mA @ 100kHz +105C
Impedance: 0.015 ohms
Dimensions: d8 x 9mm

Markings may vary from what is shown in the image.

Prices and stock availability subject to change without prior notice. If you want this product but it indicates it is not in stock, chat us or simply add it to your cart anyway. Our staff will contact you to inform if we can/cannot provide the item in your order.
