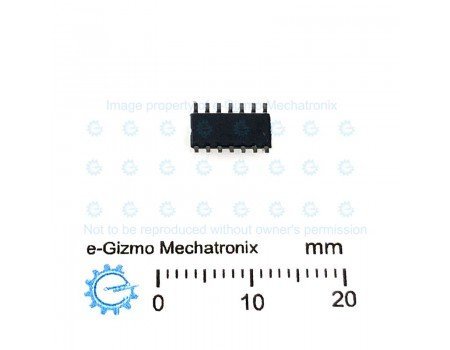

74ACT32 Quad 2 input OR gate - SOIC-14

Quad 2 input OR gate



Key Specifications
-Supply Voltage (V_CC): 4.5 V to 5.5 V
-Input Voltage Logic 0: 0.8 to 1.5V max.
-Input Voltage Logic 1: 1.5 to 2.0V min.
-Output Voltage: 5.4V (Logic 1) 0.36 (Logic 0)
-Output Current (I_O): 75mA (maximum)
-Propagation Delay (t_pd): 9 ns (typical at V_CC = 5 V)
-Power Dissipation (P_D): 1 mW (typical)
Temperature Range: -40°C to +85°C

Package/Image: SOIC-14
