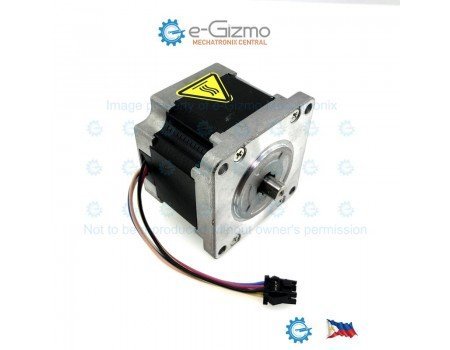

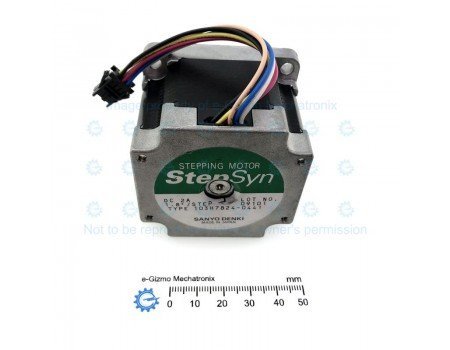

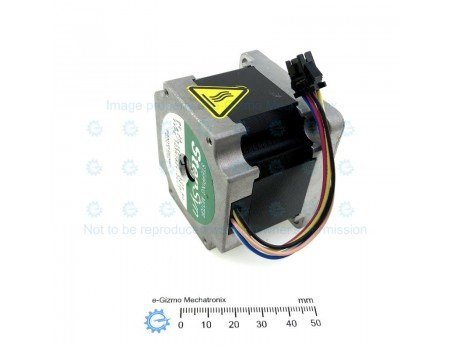

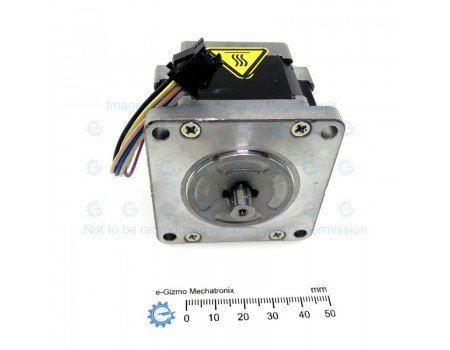

103H7824 Unipolar Stepping Motor 2.0A 1.8 deg 60mm NEMA 24

Tags: Stepper Motor Driver , 2 phase , 5 phase

Description
Reviews

103H78 series 2-phase Unipolar Stepping Motor
* Short Drive Shaft d8 x 8.5mm

Manufacturer: Sanyo Denki

Frame size: 60mm (NEMA 24)
Drive Method: Unipolar
Phases: 2
Current: 2.0A per phase
Winding Resistance: 1.8R per phase
Inductance: 3.6mH per phase
Holding Torque: 1.17 N*m
Rotor Inertia: 0.4 kg*m2
Weight: 670g

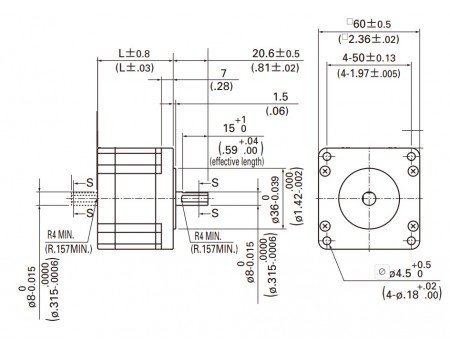

Wiring and Dimensions:
See in photo gallery.
L= 48mm
Shaft Length = 8.5mm

Note: Unused Surplus

Prices and stock availability subject to change without prior notice. If you want this product but it indicates it is not in stock, chat us or simply add it to your cart anyway. Our staff will contact you to inform if we can/cannot provide the item in your order.
