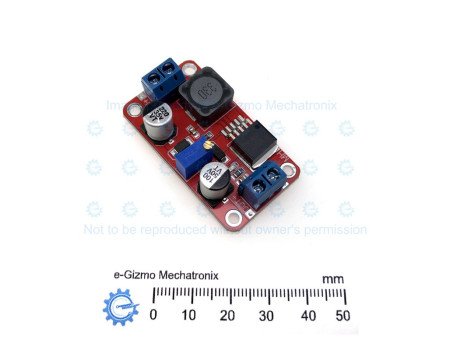

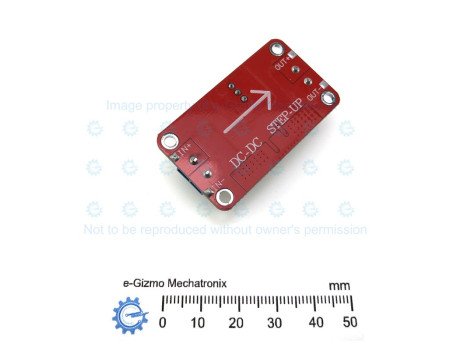

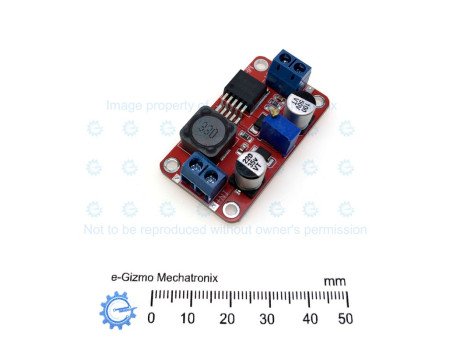

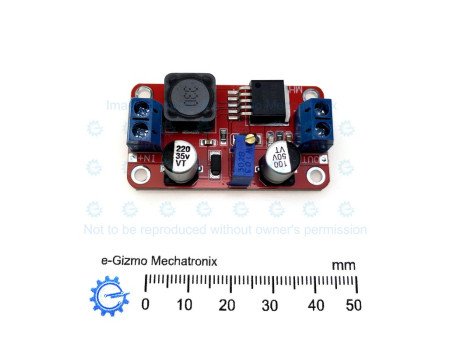

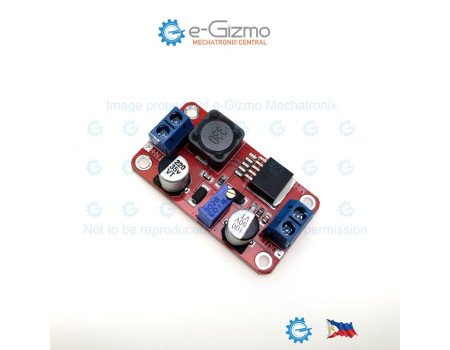

Step Up Boost Converter 30W (5A) XL6019

Tags: kit , kit power supply , power supply , charger , kit charger , battery charger

Description
Reviews

Module Topology: Primarily Boost (Step-Up).
Input Voltage Range: 5V DC to 40V DC.
Output Voltage Range: Adjustable, 1.25V to 40V DC
Max Switching Current: 5A (Peak Internal Limit)
Max Continuous Output:1.5A to 3A (Typical) Needs a heatsink above 2A or 15W.
Switching Frequency: Fixed 180 kHz
Efficiency: Up to 94%
Output Ripple: <100mV (Typical)
Protection Features: Thermal shutdown, Current limiting
Typical Dimensions: 50mm x 28mm x 13mm

Prices and stock availability subject to change without prior notice. If you want this product but it indicates it is not in stock, chat us or simply add it to your cart anyway. Our staff will contact you to inform if we can/cannot provide the item in your order.
