Passive Electromagnetic Buzzer d12mm 140ohms 8V-16V

Tags: speaker , buzzer , piezo

Description
Reviews

Mfr: KEPO

Rated Voltage: 12VDC
Input Voltage: 8 to 16VDC
Sound Pressure Level: 90-95dB @12VDC/2400Hz/10cm
Max. Rated Current: 40mA @ 12VDC
Resonant Frequency: 2400Hz
Coil Resistance: 140 ohms +/-10%
Coil Impedance: 240 ohms
Housing Material: PBT

Weight: 1.6g

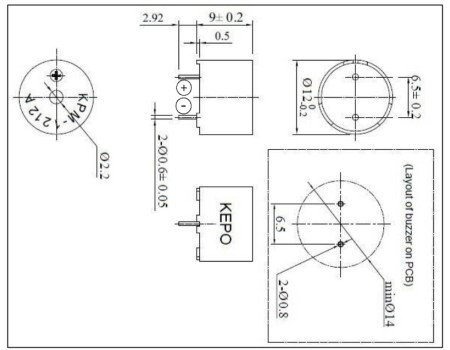

Dimensions: d12 x 9mm approx.

Note: This device is basically a small speaker. A drive circuitry is needed to make it sound. Operate near the resonant frequency to get the loudest sound possible.

Prices and stock availability subject to change without prior notice. If you want this product but it indicates it is not in stock, chat us or simply add it to your cart anyway. Our staff will contact you to inform if we can/cannot provide the item in your order.
