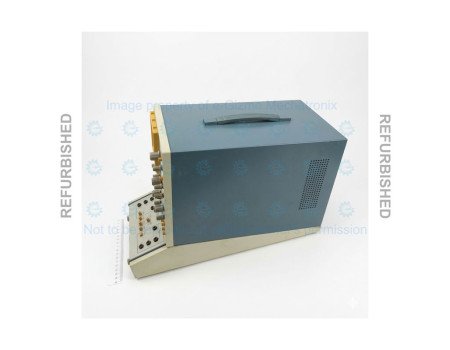

MADELL CA4810A Curve Tracer

The MADELL CA4810A is a professional-grade transistor curve tracer designed for the graphical analysis and characterization of semiconductor devices. It provides a visual representation of a component`s V-I (Voltage-Current) characteristics, making it an essential tool for circuit design, component matching, and failure analysis.

Key Technical Specifications

Collector Sweeping Supply:
-Max Peak Voltage: Up to 500V
-Max Peak Current: Up to 10A
Vertical Axis (Collector Current): 2µA/div to 1A/div in 15 steps (accuracy ±3%).
Horizontal Axis (Collector Voltage): 0.05V/div to 50V/div in 10 steps.
Step Signal Generator:
Step Current: 1µA to 0.1A in 16 steps.
Step Voltage: 0.05V to 2V in 6 steps.
Number of Steps: 4 to 10 per cluster, continuously adjustable.

Features:
Analog CRT Display: High-resolution trace for clear visualization of complex families of curves.
Integrated Test Fixture:
Dual-Channel Capability: Side-by-side comparison between two different devices.

Notes:

1. Indicated price is VAT EXCLUSIVE

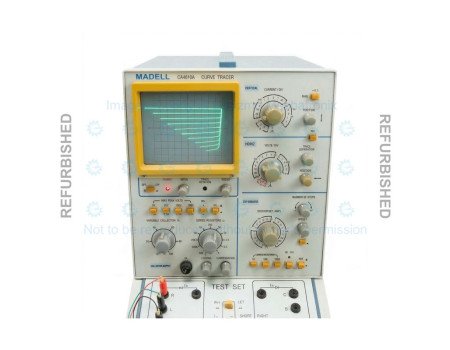

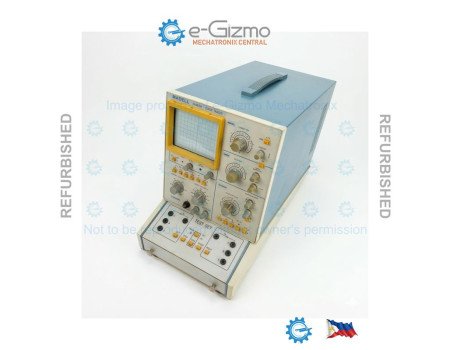

2. This item is a refurbished surplus in good working condition. Expect minor cosmetic flaws like small dents, scratches, chipped paint. Actual unit image is shown.

3. No other accessories included other than those shown in the image.
