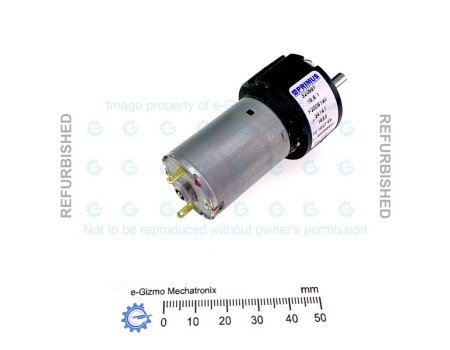

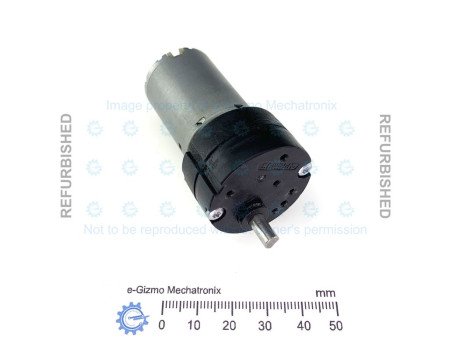

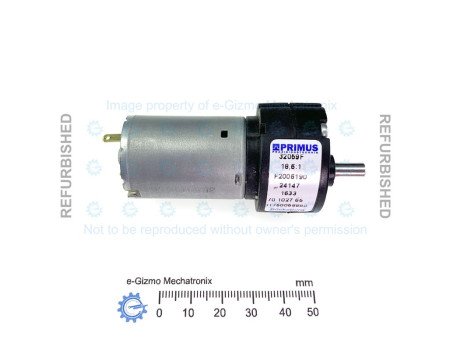

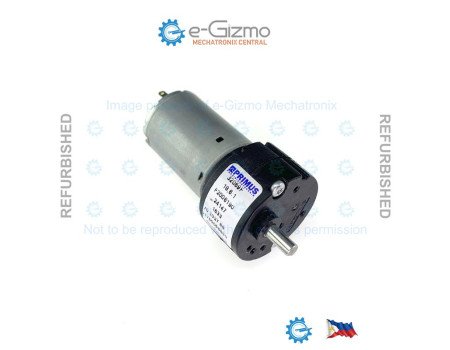

Gear Motor 18VDC 180RPM

Tags: motor , stepper motor , dc motor , gear motor

Description

This high-performance drive unit is a precision-engineered Brushed DC Motor paired with a Gearhead, salvaged from industrial-grade ATM hardware.

Brand: PRIMUS

Operating Voltage: 18VDC Nominal, 6VDC-24VDC
No load RPM: 180RPM @ 18VDC , 120RPM@12V,50RPM @ 6VDC
Current: 30mA (No load)
Gear Ratio: 18.6:1

Motor Diameter: 27.5mm
Gearhead Diameter: 35.8mm
Overall Lenght: 77.3mm (up to shaft tip)
Shaft Diameter: 5mm, D shaped
Shaft Lenght: 10mm

Note: This item is a refurbished surplus in good working condition. Expect minor cosmetic flaws like small dents, scratches, chipped paint.

Prices and stock availability subject to change without prior notice. If you want this product but it indicates it is not in stock, chat us or simply add it to your cart anyway. Our staff will contact you to inform if we can/cannot provide the item in your order.
