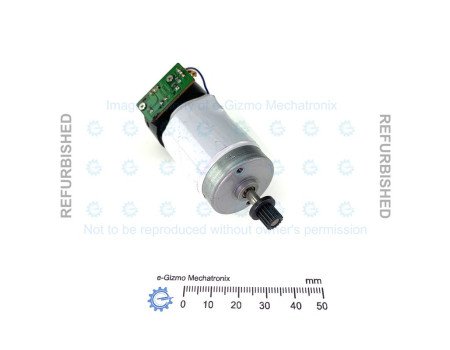

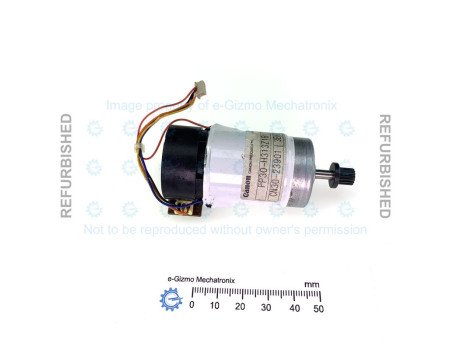

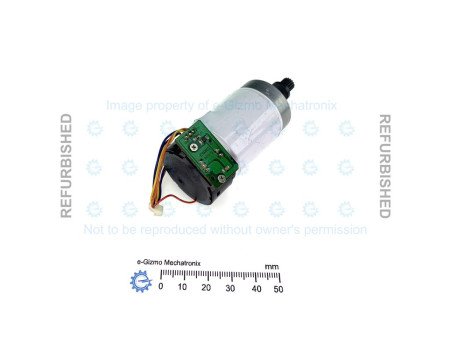

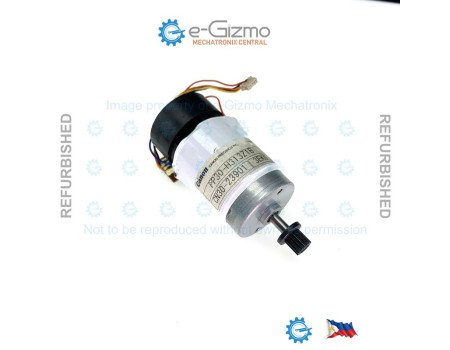

FP30 18V DC Motor with Optical Speed Encoder

Tags: motor , stepper motor , dc motor , gear motor

Description

This high-performance drive unit is a precision-engineered Brushed DC Motor, salvaged from industrial-grade ATM hardware.

Mfr: Canon

Operating Voltage: 18VDC Nominal, 6VDC-24VDC
No load RPM: 3150RPM @ 18VDC , 2000RPM@12V, 960RPM @ 6VDC
Current: 30mA (No load)

Diameter: 30mm
Overall Lenght: 79mm (up to shaft base)
Shaft Diameter: 4mm
Shaft Lenght: 16mm

Wiring:
RED - Motor (+)
BLUE - Motor (-)
Black- Encoder 0V
Orange - Encoder +5V
Yellow - Encoder Output (5V Logic)

Note: This item is a refurbished surplus in good working condition. Expect minor cosmetic flaws like small dents, scratches, chipped paint.
