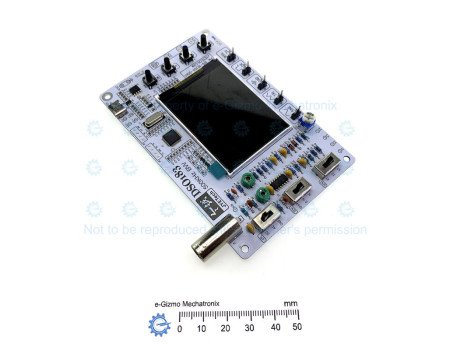

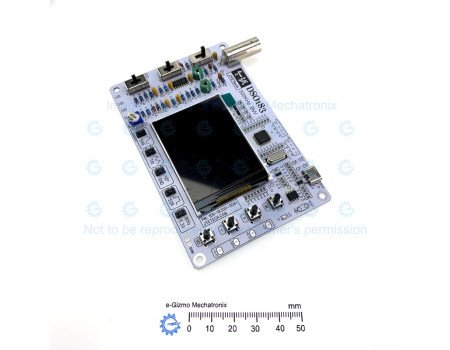

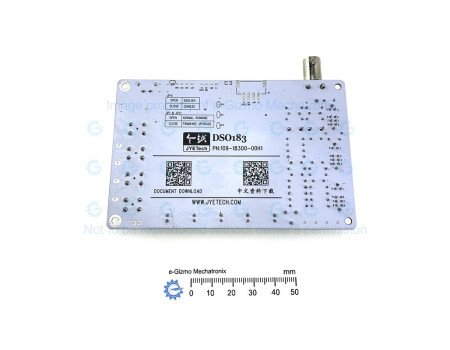

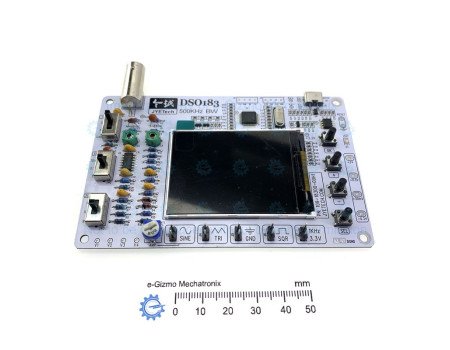

DSO183 500kHz Oscilloscope DSO Module + Built-in Signal Souces (Fully Assembled)

Tags: Test , measurements , signal , generator , function

Description

One Channel Digital Oscilloscope with built-in Sine, Triangle, and Square Wave Signal Generator

2.5" TFT Color Display
12-bit 1.5 MSPS Sampling Rate
Buffer Depth: 1024 bytes
Analog Bandwidth: 0-500KHz
Vertical Sensitivity: 10mV/Div-5V/Div (1-2-5 progressive manner)
The Horizontal Time Base Range: 1µs/Div -500s/Div (1-2-5 progressive manner)
Power Input: 5VDC Through USB C Type Power Port
Signal Generator Frequency: 1kHz Approx.

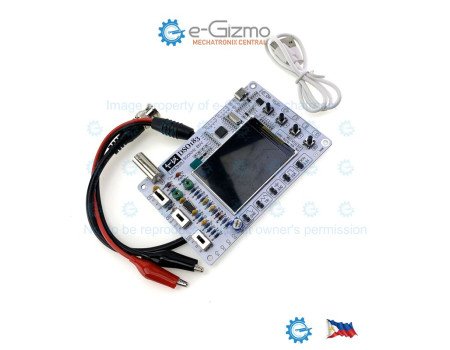

Kit Contents:
1x DSO183 Module

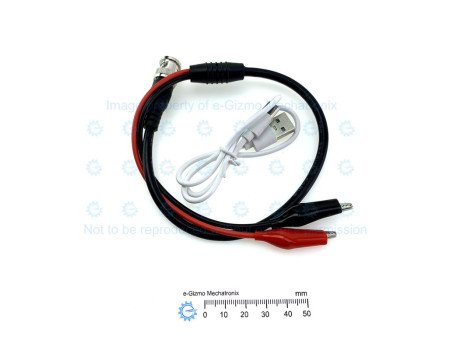

1x Test Cable
1x USB C Cable (Power Delivery only)

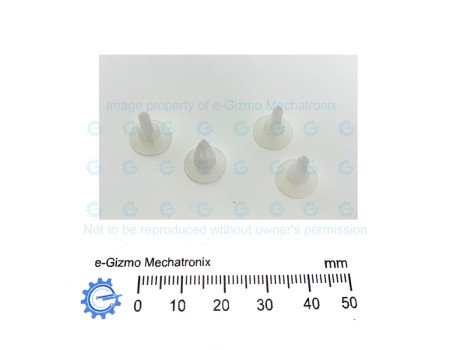

4x Nylon stand off

Prices and stock availability subject to change without prior notice. If you want this product but it indicates it is not in stock, chat us or simply add it to your cart anyway. Our staff will contact you to inform if we can/cannot provide the item in your order.
