e-Gizmo Inductive Proximity (Metal Detector) Sensor Module

Tags: kit , kit sensor , measurement , kit measurement

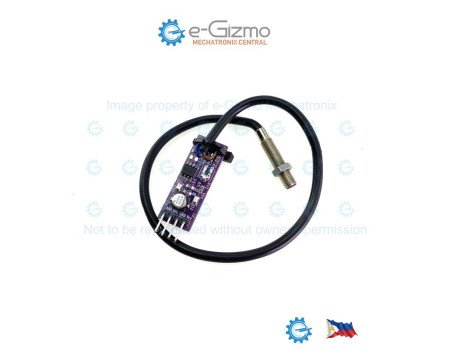

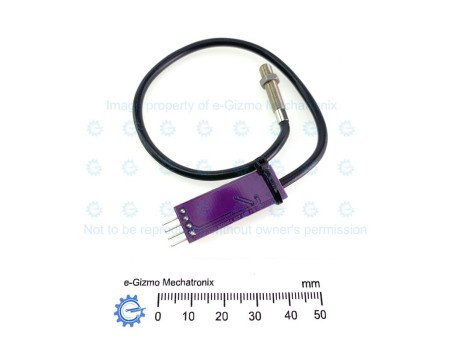

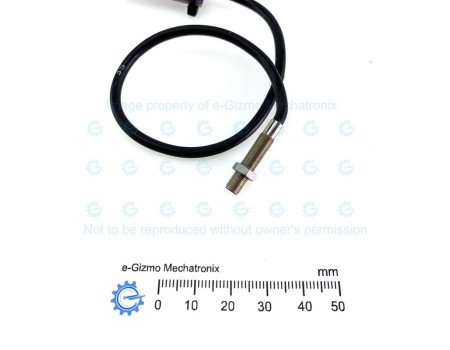

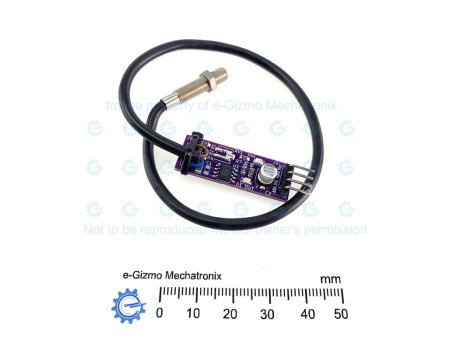

The e-Gizmo Inductive Proximity Sensor Module is a compact metal detection solution designed to sense both ferrous and non-ferrous metals, such as iron and aluminum, at a typical range of 1 mm. Operating at a nominal 5V DC (4.7V–6.0V range), it features a threaded cylindrical probe on a flexible cable for easy mounting in tight mechanical assemblies.

The module provides dual signal outputs to suit various applications: an analog output (0.8V to 2.8V typ.) for variable proximity monitoring, and an active-LOW digital output that sits HIGH by default and drops LOW with an onboard LED indicator when metal is detected. Ideal for position sensing, limit switching, and object counting in microcontroller-based systems.

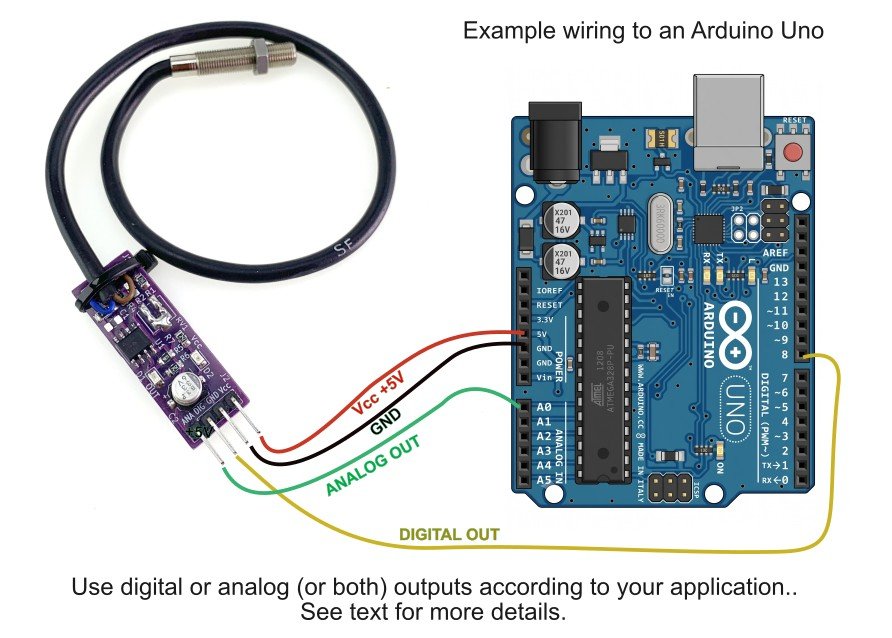

Pinout & Interface

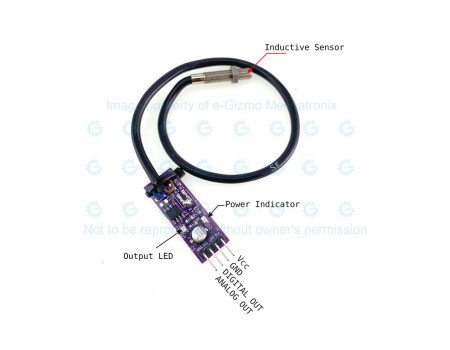

The board provides a standard 4-pin header (labeled on the PCB):
VCC: Power Supply (+5V DC)
GND: Ground
DIG: Digital Output (5V TTL logic level, convenient for microcontrollers/interrupt pins)
ANA: Analog Output (Proportional voltage output for distance/density sensing)

Specifications
Specs	Sensing Technology: Inductive Metal Detection Inductive Sensor Diameter: M5 Detectable Materials: Ferrous & Non-Ferrous Metals (e.g., Iron, Aluminum) Operating Voltage: 4.7V – 6.0V DC (5.0V Nominal) Typical Sensing Distance: 1 mm Analog Output Voltage: 0.8V to 2.8V (typical variation based on proximity/metal target) Digital Output: 5V Logic Level (High/Low output for threshold detection)

Prices and stock availability subject to change without prior notice. If you want this product but it indicates it is not in stock, chat us or simply add it to your cart anyway. Our staff will contact you to inform if we can/cannot provide the item in your order.
