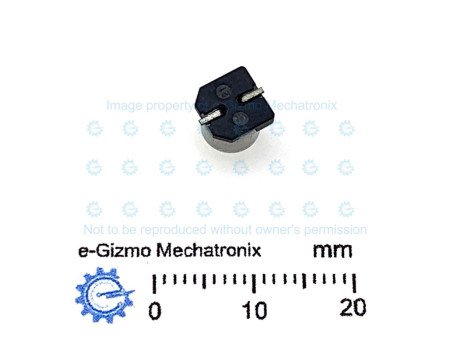

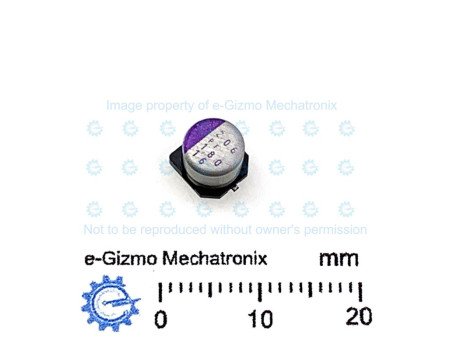

Panasonic 180uF 16V 105C Conductive Polymer Capacitor SVPF Series

Tags: capacitor , tantalum capacitor , smd tantalum , solid polymer , conductive polymer , low esr

Description
Code Examples

Panasonic Conductive Polymer Capacitors SMD.

Ultra low ESR with large permissible ripple current

Manufacturer Part No: 16SVPF180M
Capacitance: 180uF +/-20%
Working Voltage: 16VDC
Category Temperature Range: -55C to +105C
Dissipation Factor: 0.12@120Hz
Ripple Current: 3300mA @ 100kHz +105C
Impedance: 0.022 ohms
Dimensions: d6.3x 5.9mm

Markings may vary from what is shown in the image.

Prices and stock availability subject to change without prior notice. If you want this product but it indicates it is not in stock, chat us or simply add it to your cart anyway. Our staff will contact you to inform if we can/cannot provide the item in your order.
