ESP32-S3-DevKitC Development Board 16NR8 16MB Flash 8MB RAM

Tags: kit , programmers , conrollers , cpld , spld

Description
Code Examples

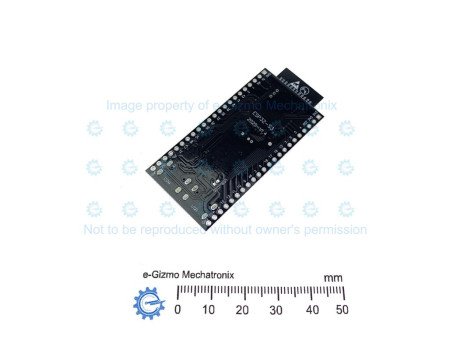

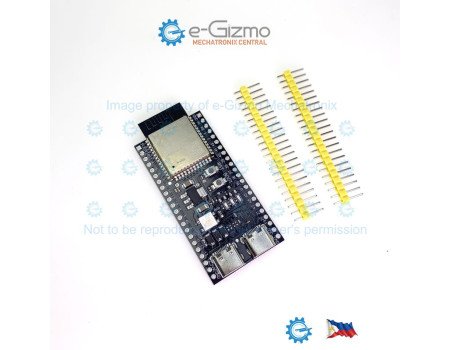

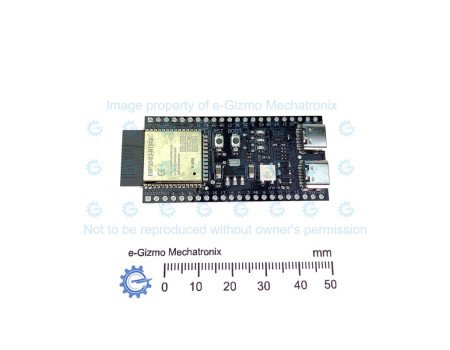

The ESP32-S3-DevKitC-1 (featuring the ESP32-S3-WROOM-1-N16R8 module) is a clone of the entry-level development board from Espressif Systems. It breaks out all the module`s pins into breadboard-friendly headers and adds power management, dual USB ports, and user controls for rapid prototyping.

Key Features & On-Board Hardware

Core Module: ESP32-S3-WROOM-1 with 16 MB Octal SPI Flash and 8 MB Octal SPI PSRAM, 240 MHz dual-core Xtensa LX7 CPU with AI vector extensions.
Dual USB Ports: Features a USB-to-UART port (for standard flashing/debugging via a CP2102 chip) and a Native USB OTG port (direct to the S3 chip for USB device emulation, high-speed transfers, or JTAG debugging).
Form Factor & IO: Dual 22-pin male headers break out GPIOs, ADC, SPI, I2C, UART, PWM, and display/camera interfaces directly to a standard breadboard.
Power Supply: Accepts power via USB-C (5V) or directly through 5V/3V3 power headers, regulated onboard by a 3.3V LDO.

Prices and stock availability subject to change without prior notice. If you want this product but it indicates it is not in stock, chat us or simply add it to your cart anyway. Our staff will contact you to inform if we can/cannot provide the item in your order.
