NE555 Pulse Frequency Module

Based on 0 reviews. - Write a review

₱36.00

Stock: In Stock
Product Code: 580013280
Weight: 0.00g
Product ID: 1331

Add to Cart

Buy Now

Add to Wish List Compare this Product

Description
Reviews

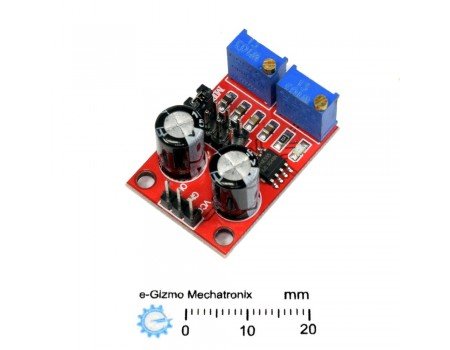

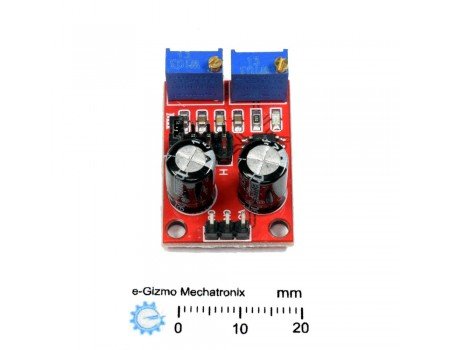

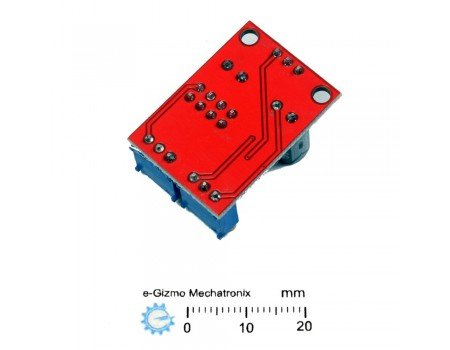

A low-cost pulse generator module based on a 555 timer chip. It has a jumper selectable frequency band setting spanning 1Hz-200KHz in 4 ranges, a frequency and duty cycle trimmer resistor adjustment.

Specifications :

Power Input	5-15VDC
Current Output	15mA to 35mA
Input current	>=100mA
Output Amplitude	4.2V V-pp to 11.4 V-pp (Different input voltage, the output amplitude will be different)
Output LED Indications	- Low level, LED is ON - High Level, LED is OFF - Low Frequency, LED is Flashing
PCB Dimensions	22x31mm

Downloads :

Hardware Manual

Download
